Report Feature Updates:

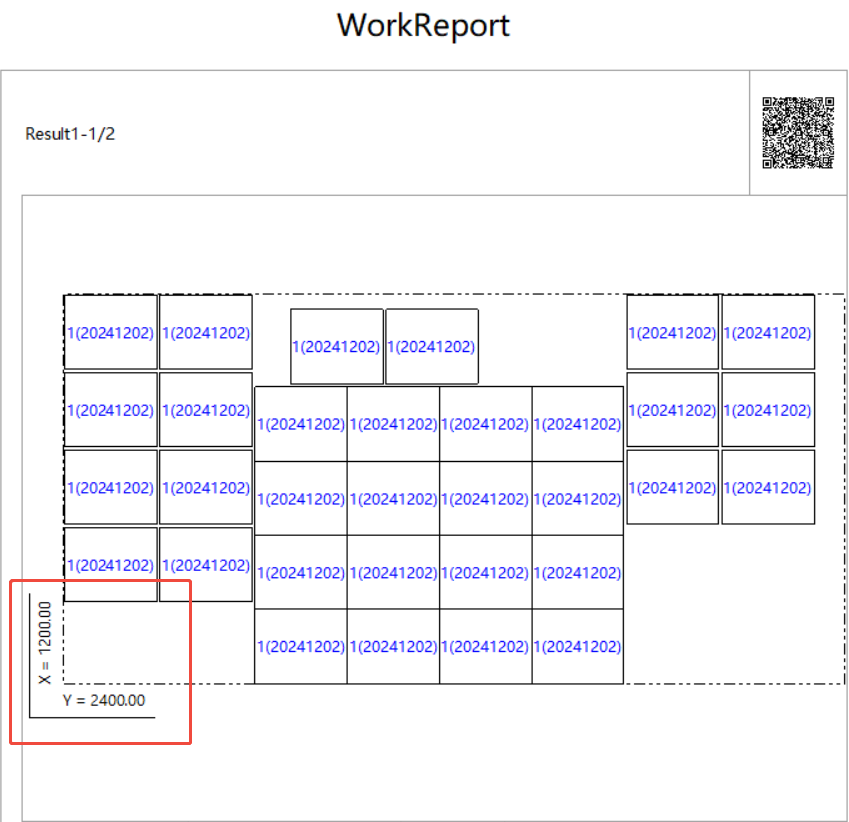

1.Supported the report form layout thumbnail to maintain the view orientation and display the position of the docking points

Add the position of the docking points and a schematic diagram of the machine tool direction to the layout thumbnail of the report form, which facilitates the identification of the size and direction of the sheet metal during processing.

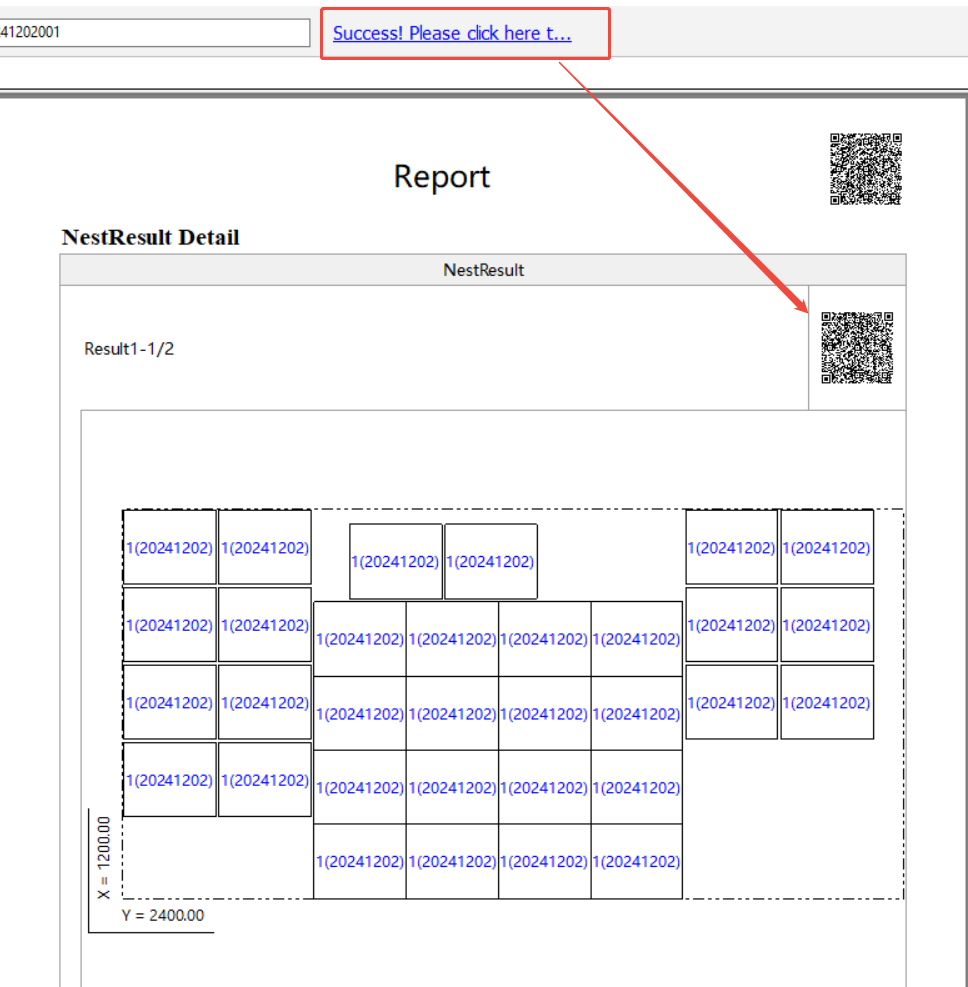

2.Supported to scan QR code to get the Nesting Diagram in the WeChat mini-program of the report form

Add a new QR code option in the configuration of general report form parameters, and the WeChat QR code can be selected. After setting, open the new version of the report form, click to refresh the QR code, and then scan the QR code of the exported PDF to enter the "My Machine Tool" mini-program.

Label Feature Updates:

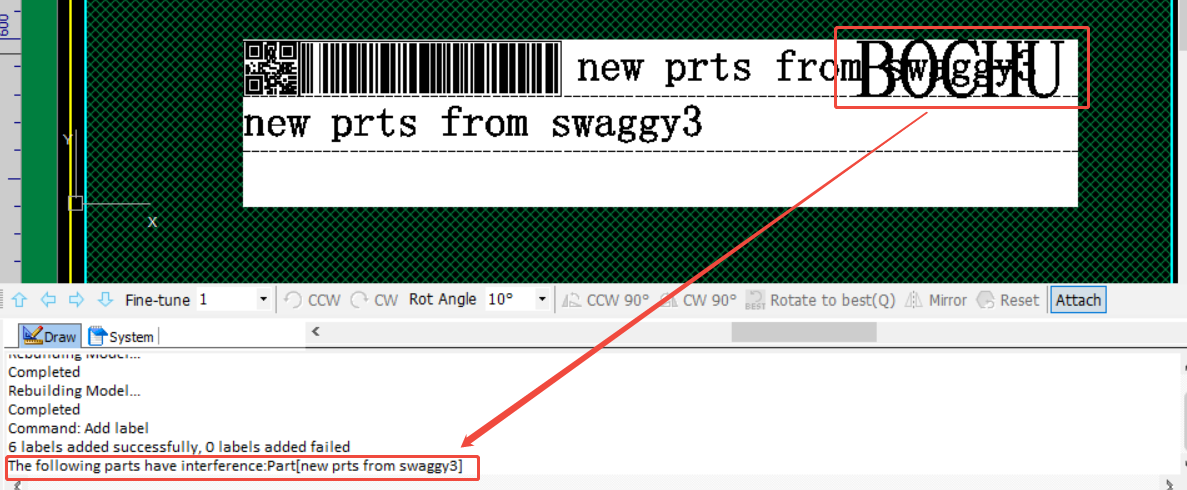

1.Supported to add tags, and the length of the tags can be adaptively extended according to the height of the characters

The new version can adaptively adjust the length of the label according to the height of the actual text, avoiding the situation where the fields are not fully displayed. When the text on the label overlaps, the system bar will give a prompt.

CloudNest Feature Updates:

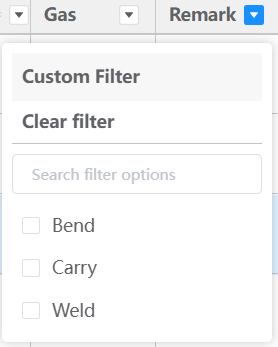

1.Supported the filtering of extended attributes and priorities in the CloudNest part list

Supported the filtering and sorting of priorities, as well as the filtering of extended attributes of parts, which greatly improves its applicability.

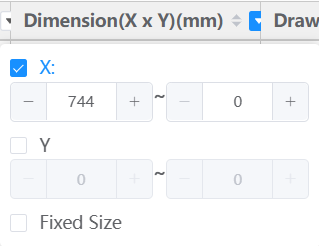

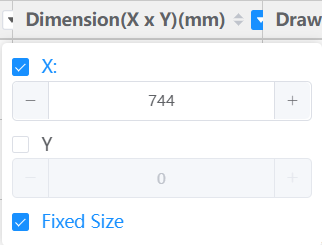

2.Supported to precise filter in the part dimensions of CloudNest

Users can accurately filter parts according to the range of length or width, or based on fixed size.

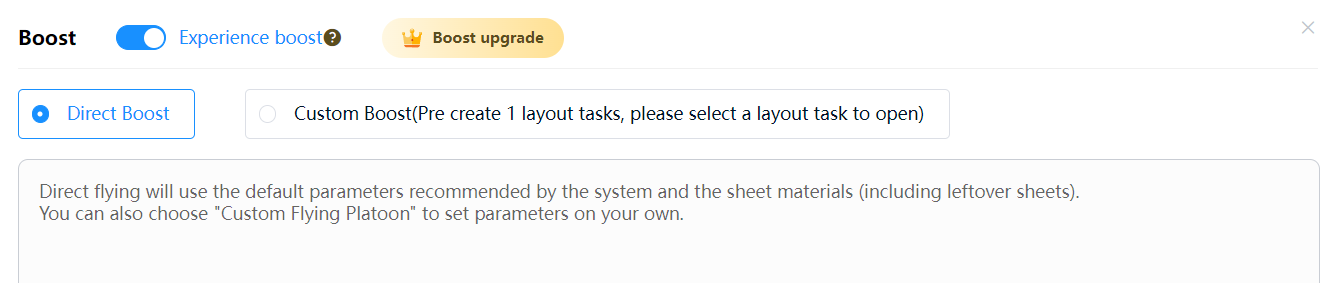

3.Supported supercomputing rapid nesting in CloudNest

The function entrances for rapid nesting and custom rapid nesting are merged. The rapid nesting function supports supercomputing nesting. If the user has not purchased the supercomputing experience package, they can still enable the supercomputing experience. The software will perform free supercomputing nesting during the idle time of the server (the queuing time may be relatively long), which can effectively improve the utilization rate of sheet metal.

Feature Package Updates：

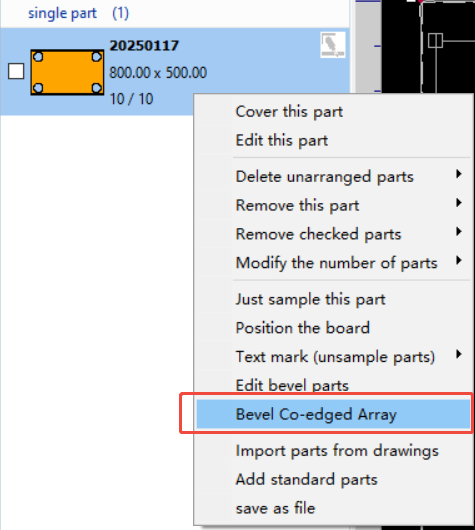

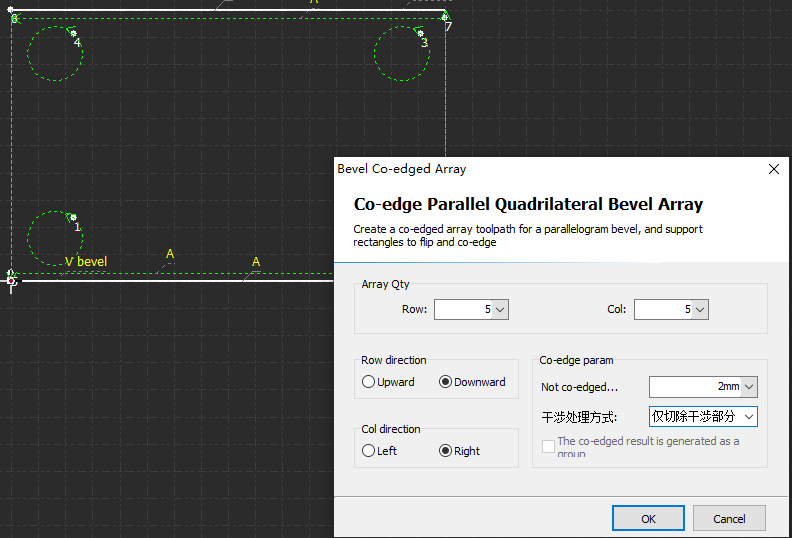

1.The "Bevel Plug-in" supports the common edge array of bevel parts

Supported the common edge array of opposite sides for parallelogram bevel parts. The whole after the common edge operation is regarded as a part combination for nesting.

2.Supported to batch import of ship GEN files in CloudNest.

Supported batch importing of ship GEN files, can retain the thickness attribute in the GEN files, and at the same time, can retain the original GEN file name as the part name.

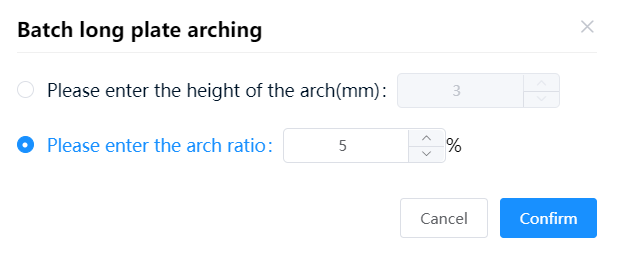

3.Supported to set parameters for the camber of long plates according to the size ratio in CloudNest.

Other Feature Updates：

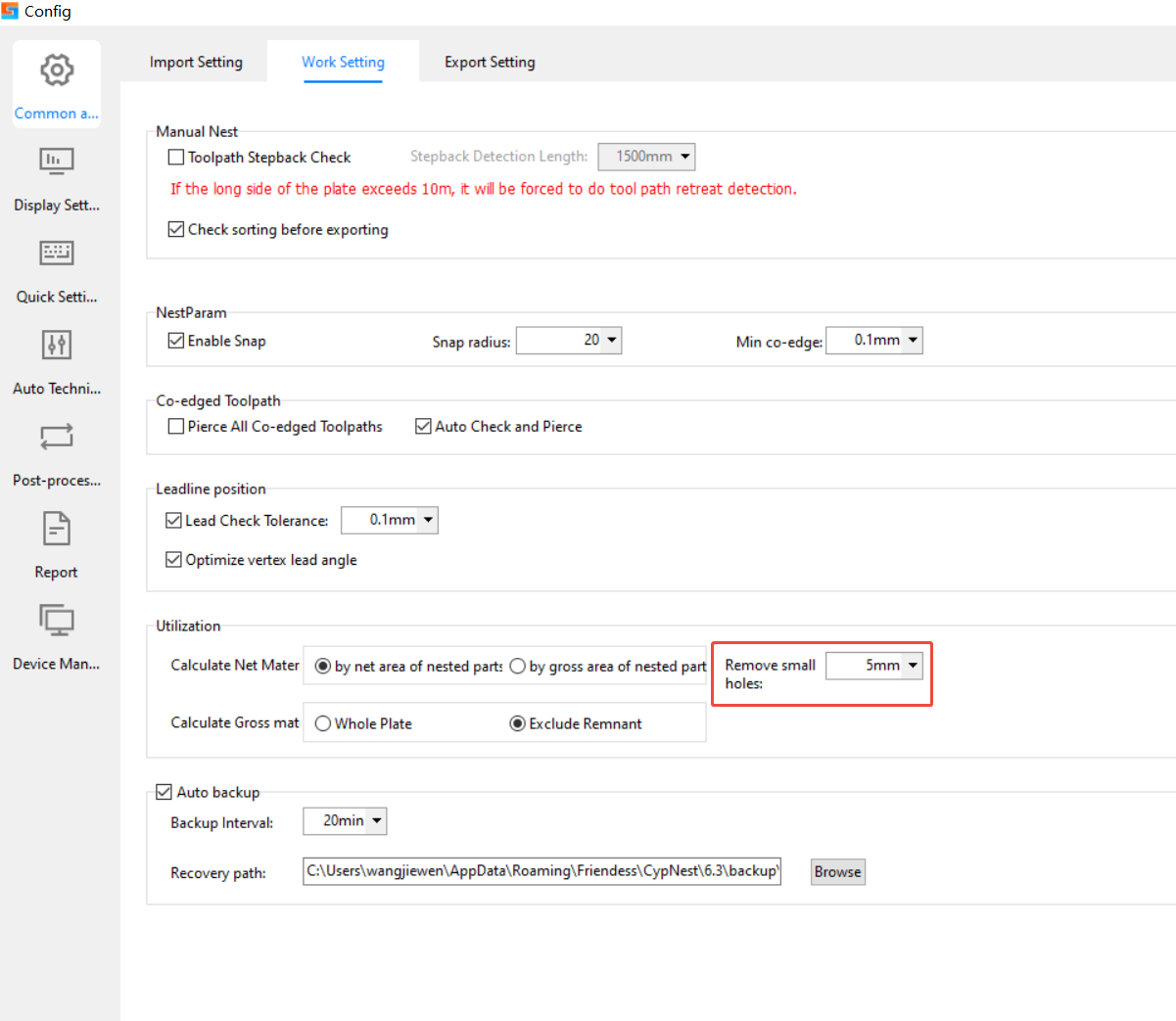

1.The utilization rate calculation supports excluding small holes.
