FSCUT5000

FSCUT5000 series is EtherCAT bus system specially designed for fiber laser tube cutting machine. FSCUT5000A applied to 3-chuck delivering structure, FSCUT5000B applied to 2-chuck structure, work with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.

Technical Data

Model
FSCUT5000A
Control software
TubePro
Applications
3-chuck and 7-axis linkage structure, delivering tube in production.
Tube collimating center compensation
●
Tube corner technique
●
Feeding tube in production
●
EtherCAT bus real-time comunication
●
Active control technology
●
3-chuck linkage delivering tube
●
Model
FSCUT5000B
Control software
TubePro
Applications
2-chuck feeding tube
Tube collimating center compensation
●
Tube corner technique
●
Feeding tube in production
●
EtherCAT bus real-time comunication
●
Active control technology
●
3-chuck linkage delivering tube
-

Benefits

Function performance
Detect and offset tube center error in production to guarantee high precison of through holes cutting.
Active control based on ethercat bus technology, more faster and stable in tube corner following and cutting.
Support holders following up rotating tube actively to ensure the tube collimating center and improve workpiece quality.
Support hollow chuck structure to allow longer tube production in shorter machine travel range.
Support 3-chuck delivering tube in production to guarantee the precision and minimize the waste.
Nesting software
TubesT 3D nesting software makes it easier in parts drawing and toolpath generation, also to expand your machine production capability.

Application

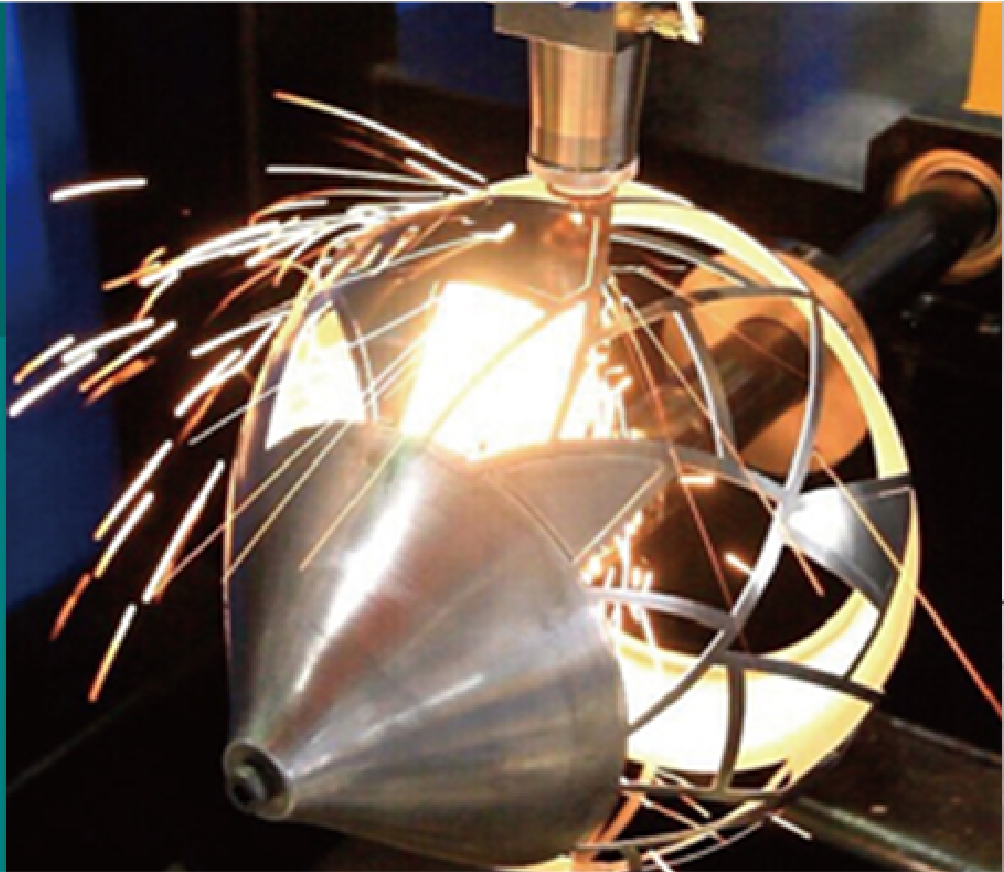

Fit for tube cutting machine of high speed and precision. Widely used in furniture, display rack, architecture and fitness equipment production industries.

FSCUT5000
Components
BCS100E Height control unit
BCS100E

Number：1

BCL4516E I/O terminal board
BCL4516E

Number：1

CypTronic-Pro Bus host station
CypTronic-Pro

Number：1

WKB Wireless hand-held remote
WKB

Number：1

BCL-AMP Preamplifier
BCL-AMP

Number：1

Accessories
HC-15/HC-20 4-pin cable
HC-15/HC-20

Number：1

LAN-3X/LAN-0.3X/1X/7X/17X Network cable
LAN-3X/LAN-0.3X/1X/7X/17X

Number：1

SPC-140/SPC-180/140B/180B RF cable
SPC-140/SPC-180/140B/180B

Number：2

TubePro TubePro
TubePro designed for professional tube cutting, supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need.
V7.0.15.142
TubesT TubesT
TubesT is a 3D tube nesting software designed for CypTube/TubePro laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.
V7.1.35.2
TubesT-Lite TubesT-Lite
TubesT-Lite is a free software to generate toolpath for FSCUT tube cutting system. It's designed for CypTube/TubePro, can import part from external igs file, draw the part of standard shape and array-nest the part on the tube.
V1.27.1
